Survey: Scientists want to boost use of lab automation

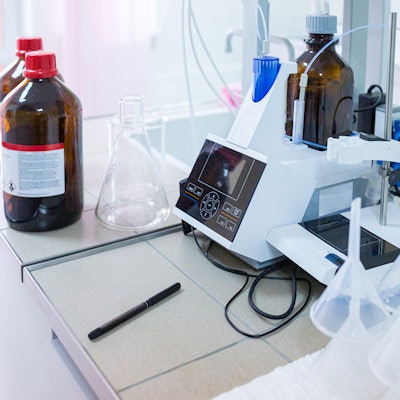

2021 05 26 03 31 8819 Automation Liquid Handling Titrator 400

In the era of big data and new analytical technologies, research laboratories are rapidly adopting new lab automation equipment and processes. While most labs are already using some type of automation in their workflows, many researchers would like to increase their use of these new technologies, according to a survey conducted by, a sister site of

In total, 74% of scientists reported that less than half of their lab operations are automated. Of those surveyed, 19% of respondents said that their labs are between 51% and 75% automated and only 6% reported an automation percentage over 76%.

Respondents to the survey were members of, with data collection completed on April 20.

Of the 960 participants in the study, 66% were scientists, researchers, or investigators; 26% were pharmaceutical or biotech scientists; 15% were laboratory staff; and 9% were postdoctoral researchers. Most participants were associated with a university (41%) or a pharmaceutical (20%) or life science (15%) company. On a regional basis, 33% of participants were based in North America, 24% in Europe, and 36% in Asia, while the remaining 7% were from various other locations around the world.

Laboratory automation can be divided into two main categories: (1) hardware and equipment used to manually gather data and (2) software and informatics tools to manage data.

The different types of lab automation tools include the following:

Automation hardware and equipment

  • Liquid handling systems: These systems dispense and sample liquids in tubes or wells and are often integrated as automated injection modules.
  • Microplate readers: Microplate readers are instruments used to detect biological, chemical, or physical events of samples in microtiter plates, which allow many samples to be simultaneously measured.
  • High-throughput screening/sequencing systems: Such systems can prepare, incubate, and analyze many plates simultaneously, further speeding the data collection process.
  • Multiplex systems: These systems use multiple dyes/tags in image-based assays to provide a means to report on several components of the cell simultaneously and consequently their effects on one another.
  • Laboratory robots: These are used to move biological or chemical samples around to synthesize novel chemical entities or to test pharmaceutical values of existing chemical matter. Advanced laboratory robotics can be used to completely automate the process of science (for example, pick/place, liquid and solid additions, heating/cooling, mixing, shaking, and testing).

Laboratory software and informatics tools

  • Bioinformatics: This term refers to the intersection of biology and computer science concerned with the acquisition, storage, analysis, and dissemination of biological data, most often DNA and amino acid sequences.
  • Cheminformatics: Cheminformatics deals with storing, indexing, searching, retrieving, and applying information about chemical compounds.
  • Enterprise content management systems (aka document or record management): These systems are used to manage the entire lifecycle of an organization's content (including documents and spreadsheets).
  • Electronic lab notebooks: Electronic notebooks replicate an interface much like a page in a paper lab notebook.
  • Laboratory information management systems (LIMSs/LISs): These software-based solutions provide workflow and data tracking support, flexible architecture, and data exchange interfaces (sometimes including managing laboratory informatics).
  • Scientific data management systems (SDMSs): SDMSs capture, catalog, and archive data generated by laboratory instruments (high-performance liquid chromatography [HPLC] and mass spectrometry) and applications (LIMSs, analytical applications, electronic laboratory notebooks). Specialized SDMSs focus on the data acquisition of individual instruments.
  • Laboratory workflow automation systems: These systems follow a set of procedural rules to manage and coordinate tasks between people and systems in the lab. Lab workflows for sample management ensure that all steps and requirements in a defined process are correct.

How do researchers use lab automation?

In the survey, most researchers reported that they currently use liquid handling systems, microplate readers, and to a lesser degree (around 49%) multiplex and high-throughput systems. Far fewer scientists reported using advanced robots, but around 45% did note that they would like to use robotics in the future. Nearly 60% of researchers also said they would like to use multiplex and high-throughput systems in the future.

2021 05 25 18 15 3113 2021 05 25 Lab Automation Figure 1

The most commonly used software and tools reported in the current survey were bioinformatics/cheminformatics, LIMSs, and specialized SDMSs. Researchers wanted to increase the use of electronic laboratory notebooks, SDMSs, and laboratory workflow automation systems in the future.

2021 05 25 18 15 3426 2021 05 25 Lab Automation Figure 2

When asked to select the top three benefits of lab automation and informatics, respondents reported the following:

  1. More reliable results
  2. Reduced errors
  3. Ability to view and analyze cumulative trends of data

Other benefits that ranked highly were fast traceability of data and ease of generation and dissemination of reports.

If the benefits of lab automation are so widely recognized, then why aren't more researchers using tools that are already available? Not surprisingly, cost is the largest factor restricting the use of lab automation, with 65% of respondents citing lack of funds as a main restriction. Over a quarter of the scientists in the poll either do not have purchasing authority or do not plan to make any capital investments in lab automation in the next year.

Another 33% plan to spend less than $50,000 in the coming year, and 27% plan to spend between $50,000 and $200,000. So, while it is clear that lab automation is a priority in many organizations, cost is still a limiting factor for practical implementation in many laboratories.

Another limitation to the implementation of lab automation is the COVID-19 pandemic: 56% of scientists reported that the pandemic delayed their plans to make capital investments in lab automation. This group likely included teams focused on non-COVID-19 research. Alternatively, a small percentage of researchers (12%) said that the pandemic accelerated their investments -- a trend observed at many companies trying to contribute to pandemic-related solutions.
